Solar Charge Controller
Solar Charge Controller
Original ImageOriginal Image

   Next: Inverter

Detailed Product Description

Professional solar charge controller manufacturers in China. our pv solar panel controller range from 12v/24v to 220 volt, 5A to 150amp.

A solar charge controller is a small box consisting of solid state circuitry that is placed between a solar panel and a battery. Its function is to regulate the amount of charge coming from the solar module that flows into the deep cycle battery bank in order to avoid the batteries being overcharged. A solar panel controller can also provide a direct connection to appliances, while continuing to recharge the battery.

Features:
PWM Charging: high charge efficiency and greatly extends the battery life.
MOSFET as Electronic Switch: makes the solar charge controller a longer life.
Protection Functions: makes the solar power system be more secure and reliable, includes overcharge protection, deep discharge protection, reverse polarity protection of module/battery/load, short circuit protection of module/load,open circuit protection without battery,over-temperature protection,battery overvoltage shutdown.
LCD Display: real-time shows the solar panel power systems status of charging, discharging and fault.
Sufficient Design Margin: maximum capacity exceeds 20% as the rated current/power, which makes the system more secure.
Intelligent Cooling Fans: it is controlled by the real-time heat sink's temperature, which makes the fan a longer life and saving energy.
Metal Case: after spray treatment, the solar controller is more beautiful and durable.

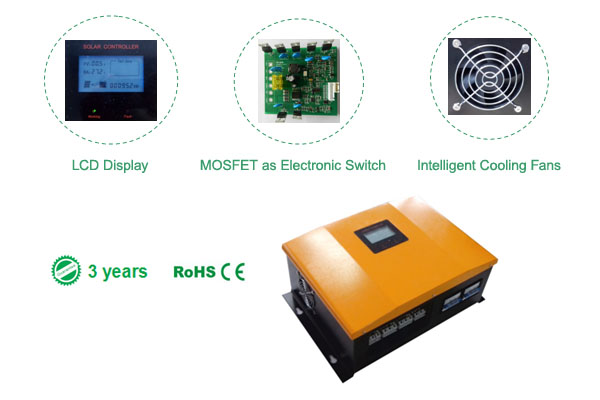

solar panel controller

PRODUCT MODELS:

Model Specification Pic Model Specification Pic
GLC12(24)05CY 12/24v, 5A 12v/24v 5A/10A/15A/20A Solar Charge Controller
 GLC12(24)40LN 12/24v, 40A 12v/24v/48v 40A/50A/60A Solar Charge Controller
GLC12(24)10CY 12/24v, 10A GLC12(24)50LN 12/24v, 50A
GLC12(24)15CY 12/24v, 15A GLC12(24)60LN 12/24v, 60A
GLC12(24)20CY 12/24v, 20A GLC4840LN 48v, 40A
GLC12(24)30LY 12/24v, 30A 12v/24v/48v 30A/40A/50A/60A Solar Charge Controller GLC4850LN 48v, 50A
GLC4830LY 48v, 30A GLC4860LN 48v, 60A
GLC12(24)40LY 12/24v, 40A GLC12(24)100LN 12/24v, 100A 12v/24v/48v 100A/150A solar Charge Controller
GLC12(24)50LY 12/24v, 50A GLC12(24)150LN 12/24v, 150A
GLC12(24)60LY 12/24v, 60A GLC48100LN 48v, 100A
GLC4840LY 48v, 40A GLC48150LN 48v, 150A
GLC4850LY 48v, 50A GLC11050LN 110v, 50A 110v/220v 50A Solar Charge Controller
GLC4860LY 48v, 60A GLC22050LN 220v, 50A

REMARK:
GLC - Green Light Energy Controller,
C - Common, L - LCD display,
Y - With output, N - Without output

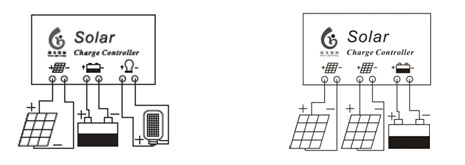

WIRING DIAGRAM:

Download:Solar Charge Controller PDF File
